NOE Patterns and Secondary Structure
A summary of NOE intensity patterns for alpha-helical, beta-sheet, and other secondary structure units.
Note: The accuracy in the reported distances is not better than 5-10%.

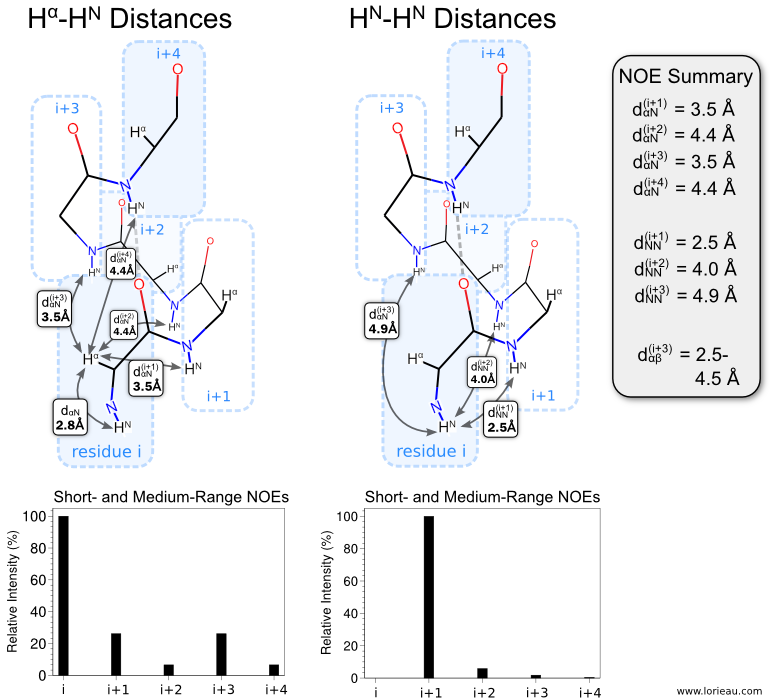

α-helix

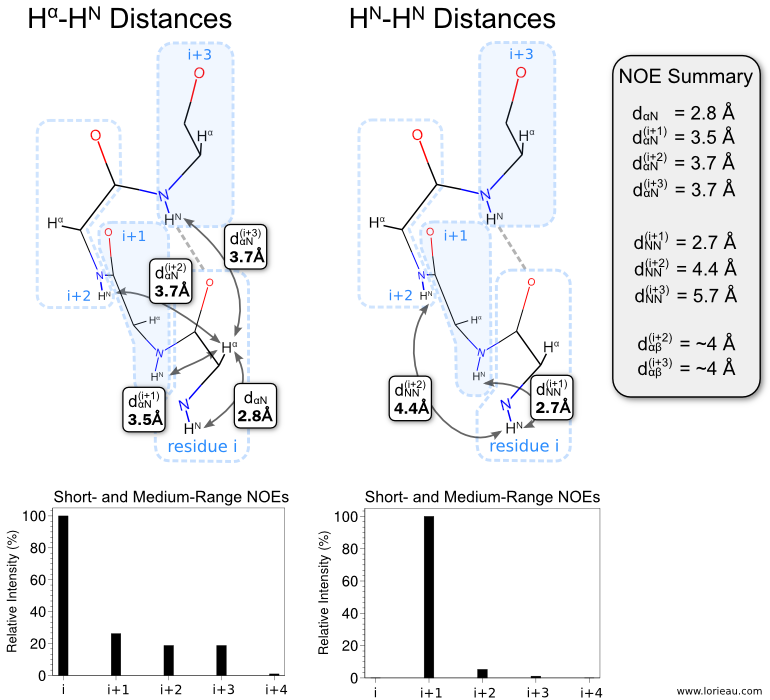

310-helix

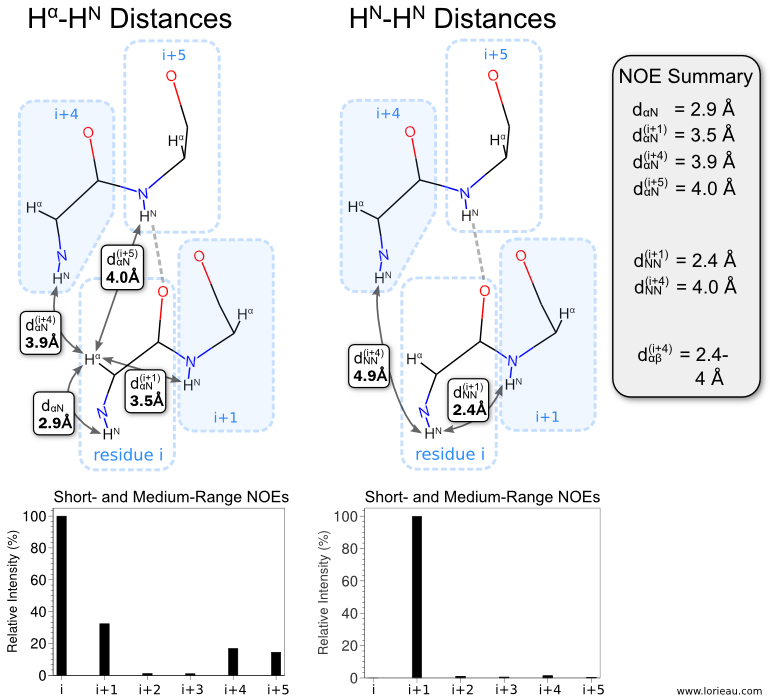

π-helix

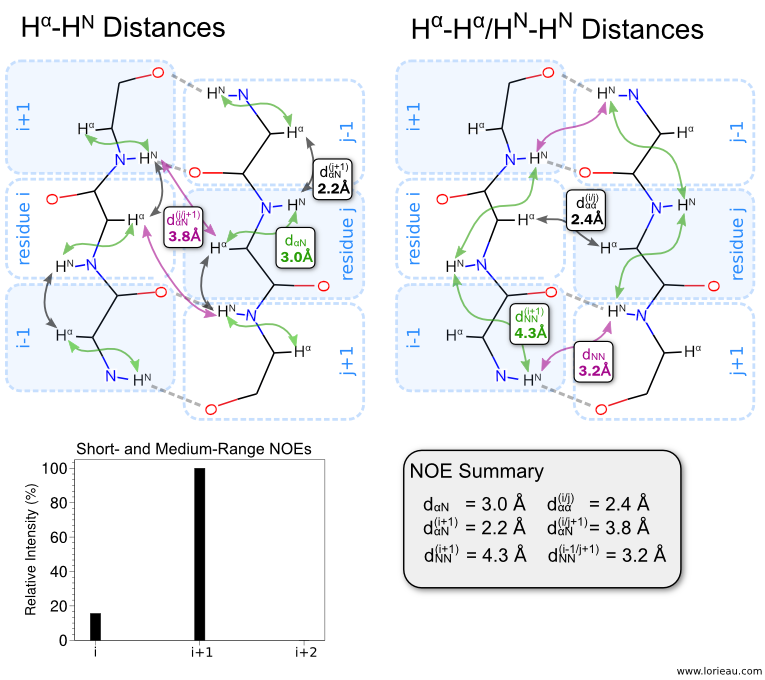

β-sheet, Anti-parallel

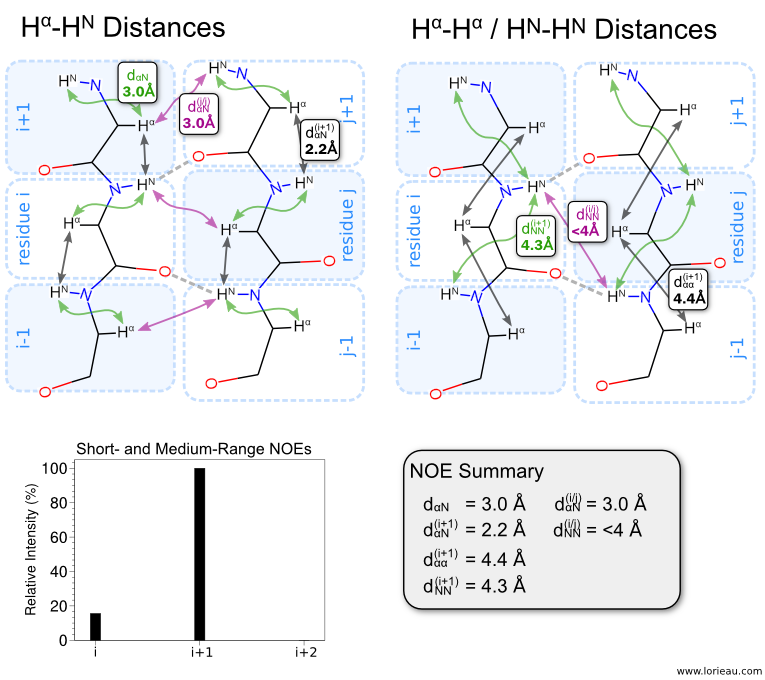

β-sheet, Parallel
